STC-RBS502GV2CB
Back to the list of
GVIF Camera>>
Specification sheet
| Spec. | Model No. | STC-RBS502GV2CB |
|---|---|---|
| Resolution | 5M | |
| Effective Pixels | 2,448 (H) x 2,048 (V) | |
| Monochrome/Color | Monochrome | |
| Frame rate (8bits) | 68.7 fps | |
| Interface | GVIF2 (w/ CCU that converts to USB3 Vision) |
|
| Protocol | GVIF2 | |
| Power supply | Power over GVIF (+12V) | |
| Power Consumption | Less than 3.5 W | |
| Operational Temperature | Up to +50 deg. C (Environment temperature) |
|
| Image Sensor | Image Sensor | SONY IMX568 |
| Shutter type | Global shutter | |
| Optical Size | 1/1.8" | |
| Cell Size | 2.74 (H) x 2.74 (V) µm | |
| Mechanical Spec. | Dimensions | 23 (W) x 23 (H) x 38.9 (D) mm |
| Weight | Approximately 35 g | |
| Lens mount | f 9.6m F No. 3.7 liquid lens | |
| Optical filter | No optical filter | |
| Interface connector | FAKRA x 1 (includes power/signal) | |
| Power/Signal connector |
| Functions | Scanning mode | Full scanning / ROI |
|---|---|---|
| Operational mode | Edge preset trigger / Free-run | |
| Image pixel format | Mono8 / Mono10 / Mono12 | |
| Exposure time | 20 µseconds to 2 seconds | |
| Gain (Analog) | 0 to 42.0 dB | |
| Gain (Digital) | x1 to x7 | |
| Gamma | 0.10 to 4.00 | |
| Binning | x2 horizontal and vertical simultaneously / Off | |
| Decimation | x2 horizontal and vertical simultaneously / Off | |
| Image flip | Vertical flip / Horizontal flip / Vertical and horizontal flip / Off |
|
| Defective pixel correction | Up to 1,024 pixels | |
| Save user settings | Support (Eight settings) | |
| White balance | N/A | |
| FFC function | Support | |
| Auto control functions | Auto exposure / Auto gain | |
| Chunk function | N/A | |
| Event function | N/A | |
| PTP function (IEEE1588) | N/A |

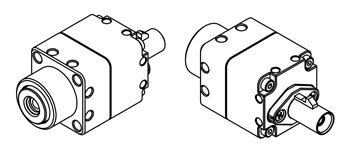

Dimensions Drawings
Spectrographic Drawings
