STC-MB33SS
Back to the list of
Monochrome Analog Progressive Area Camera >>
Specification sheet
| Spec. | Model No. | STC-MB33SS |
|---|---|---|
| Resolution | 0.3M | |
| Effective Pixels | 660 (H) x 494 (V) | |
| Monochrome/Color | Monochrome | |
| Frame rate (8bits) | 89.9 fps | |
| Interface | Analog progressive | |
| Protocol | Analog progressive | |
| Power supply | External power (+12 Vdc) | |
| Power Consumption | Less than 2.4 W | |
| Operational Temperature | Up to +50 deg. C (Environment temperature) |
|
| Image Sensor | Image Sensor | Sharp: RJ33B4AA0DT (CCD) |
| Shutter type | Global shutter | |
| Optical Size | 1/3" | |
| Cell Size | 7.40 (H) x 7.40 (V) μm | |
| Mechanical Spec. | Dimensions | 29 (W) x 29 (H) x 41 (D) mm |
| Weight | Approximately 48 g | |
| Lens mount | C mount | |
| Optical filter | No optical filter | |
| Interface connector | HR10A-10R-12PB (Hirose) or equivalent x 1 (includes power/signal) | |
| Power/Signal connector |
| Functions | Scanning mode | Full scanning / Partial scanning (1/2 vertical / 1/4 vertical) |
|---|---|---|
| Operational mode | Edge preset trigger (V reset, non-reset) / Pulse width trigger (V reset, non-reset) / Free-run |
|
| Image pixel format | Progressive monochrome | |
| Exposure time | 8.3 to 33 mseconds | |
| Gain (Analog) | 0 to 27 dB | |
| Gain (Digital) | N/A | |
| Gamma | 1 / 0.45 | |
| Binning | x2 vertical only / x4 vertical only / Off | |
| Decimation | N/A | |
| Image flip | N/A | |
| Defective pixel correction | Up to 64 pixels | |
| Save user settings | Support | |
| White balance | N/A | |
| FFC function | N/A | |
| Auto control functions | Auto exposure / Auto gain | |
| Chunk function | N/A | |
| Event function | N/A | |
| PTP function (IEEE1588) | N/A |

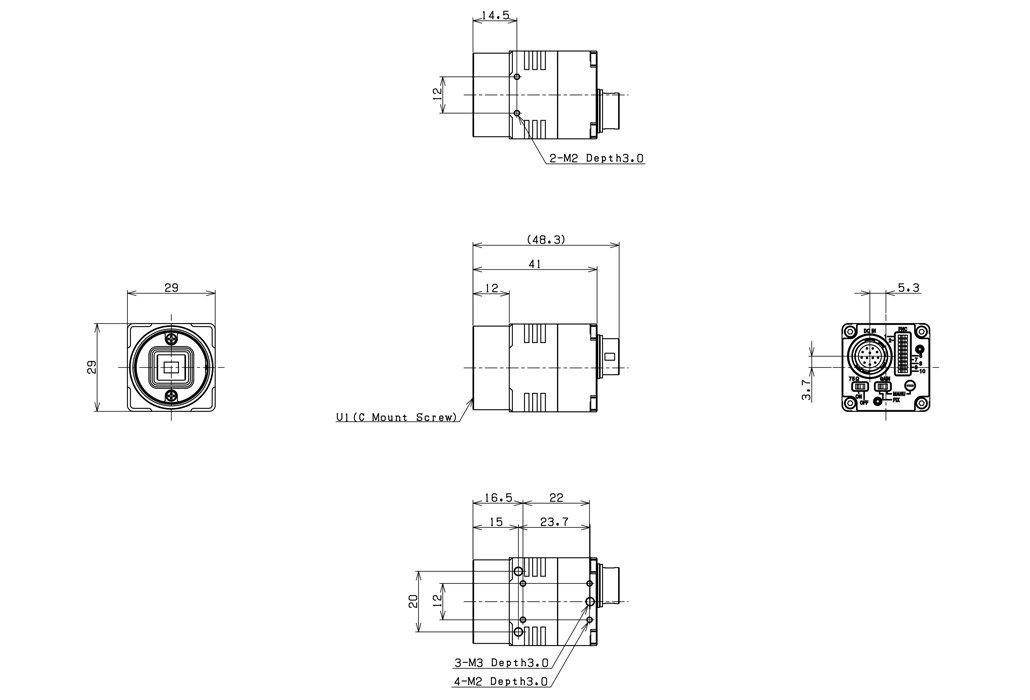

Dimensions Drawings

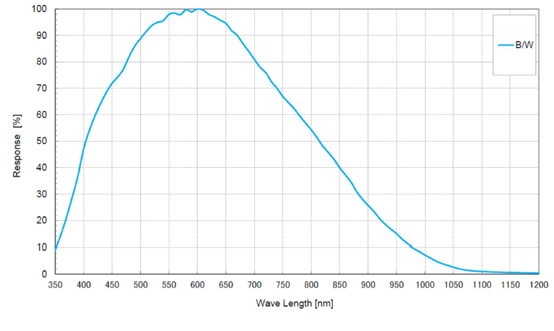

Spectrographic Drawings
