STC-MBS122BPOE
Back to the list of
GigE Vision Area Cameras >>
Specification sheet
| Spec. | Model No. | STC-MBS122BPOE |
|---|---|---|
| Resolution | 12M | |
| Effective Pixels | 4,096 (H) x 3,000 (V) | |
| Monochrome/Color | Monochrome | |
| Frame Rate (8bits) | 8.9 fps | |
| Interface | PoE: IEEE802.3af CLASS2 (1000BASE-T) | |
| Protocol | GigE Vision 2.1 | |
| Power supply | Power Over Ethernet (IEEE802.3af) / External power (+10.8 to +26.4Vdc) |
|
| Power Consumption | PoE: Less than 4.6 W External power: Less than 4.1 W |
|
| Operational Temperature | Up to +75 deg. C (Temperature sensor on camera) |
|
| Image Sensor | Image Sensor | SONY IMX304 |
| Shutter type | Global shutter | |
| Optical Size | 1.1” | |
| Cell Size | 3.45 (H) x 3.45 (V) µm | |
| Mechanical Spec. | Dimensions | 40 (W) x 30 (H) x 54.5 (D) mm |
| Weight | Approximately 100 g | |
| Lens mount | C mount | |
| Optical filter | No optical filter | |
| Interface connector | RJ45 connector x 1 | |
| Power/Signal connector | HR10A-7R-6PB (Hirose) or equivalent x 1 |
| Functions | Scanning mode | Full scanning / ROI |
|---|---|---|
| Operational mode | Edge preset trigger / Pulse width trigger / Free-run |
|
| Image pixel format | Mono8 / Mono10 / Mono12 / Mono10Packed / Mono12Packed |
|
| Exposure time | 1 µsecond to 16.777 seconds | |
| Gain (Analog) | 0 to 20.8 dB | |
| Gain (Digital) | x1 to x3 | |
| Gamma | 0.1 to 4.0 | |
| Binning | N/A | |
| Decimation | x2 horizontal and vertical simultaneously / Off | |
| Image flip | Vertical flip / Horizontal flip / Vertical and horizontal flip/ Off |
|
| Defective pixel correction | Up to 2,048 pixels | |
| Save user settings | Support (Eight settings) | |
| White balance | N/A | |
| FFC function | Support | |
| Auto control functions | Auto exposure / Auto gain | |
| Chunk function | Support | |
| Event function | Support | |
| PTP function (IEEE1588) | Support |

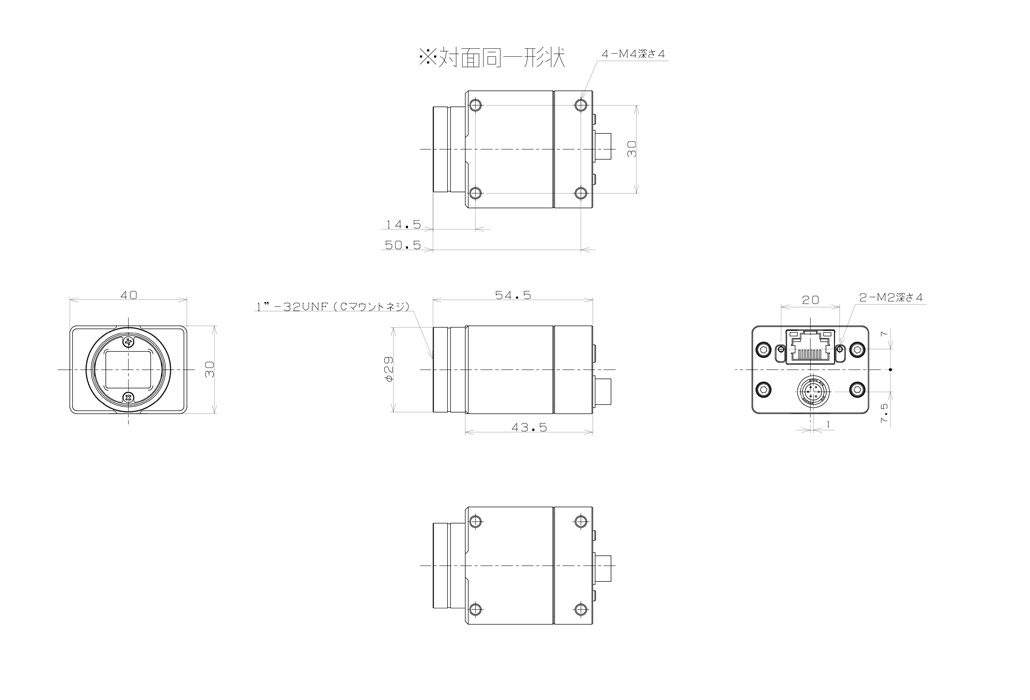

Dimensions Drawings

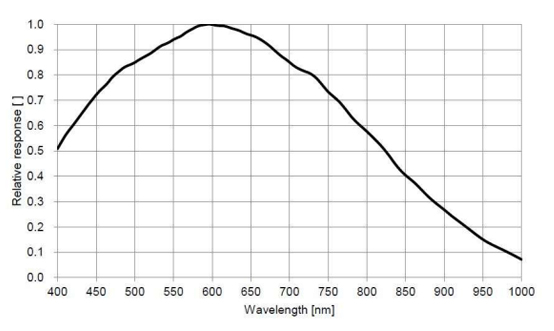

Spectrographic Drawings
