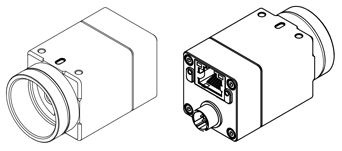

STC-MCA503POE-HS
Back to the list of
GigE Vision Area Cameras >>
Specification sheet
| Spec. | Model No. | STC-MCA503POE-HS |
|---|---|---|
| Resolution | 5M | |
| Effective Pixels | 2,592 (H) x 1,944 (V) | |
| Monochrome/Color | Color | |
| Frame Rate (8bits) | 21.8 fps | |
| Interface | PoE: IEEE802.3af CLASS2 (1000BASE-T) | |
| Protocol | GigE Vision 2.1 | |
| Power supply | Power Over Ethernet (IEEE802.3af) / External power (+10.8 to +26.4Vdc) |
|
| Power Consumption | PoE: Less than 3.6 W External power: Less than 3.0 W |
|
| Operational Temperature | Up to +77 deg. C (Temperature sensor on camera) |
|
| Image Sensor | Image Sensor | onsemi AR0521 |
| Shutter type | Rolling shutter / Global reset | |
| Optical Size | 1/2.5” | |
| Cell Size | 2.2 (H) x 2.2 (V) μm | |
| Mechanical Spec. | Dimensions | 29 (W) x 29 (H) x 53 (D) mm |
| Weight | Approximately 62 g | |
| Lens mount | C mount | |
| Optical filter | IR cut filter on it | |
| Interface connector | RJ45 connector x 1 | |
| Power/Signal connector | HR10A-7R-6PB (Hirose) or equivalent x 1 |
| Functions | Scanning mode | Full scanning / ROI |
|---|---|---|
| Operational mode | Edge preset trigger / Free-run | |
| Image pixel format | Mono8 / Mono10 / Mono12 / Mono10Packed / Mono12Packed BayerRG8 / BayerRG10 / BayerRG12 / BayerRG10Packed / BayerRG12Packed RGB8 |
|
| Exposure time | 20.2 µseconds to 1.323 seconds | |
| Gain (Analog) | x1 to x15.28 | |
| Gain (Digital) | x1 to x3 | |
| Gamma | 0.1 to 4.0 | |
| Binning | x2 horizontal and vertical individually / x4 horizontal and vertical individually / Off |
|
| Decimation | x2 horizontal and vertical individually / x4 horizontal and vertical individually / Off |
|
| Image flip | Vertical flip / Horizontal flip / Vertical and horizontal flip/ Off |
|
| Defective pixel correction | Up to 4,096 pixels | |
| Save user settings | Support (Eight settings) | |
| White balance | Auto / Manual / Push to set white balance | |
| FFC function | N/A | |
| Auto control functions | Auto exposure / Auto gain / Auto white balance | |
| Chunk function | Support | |
| Event function | Support | |
| PTP function (IEEE1588) | Support |

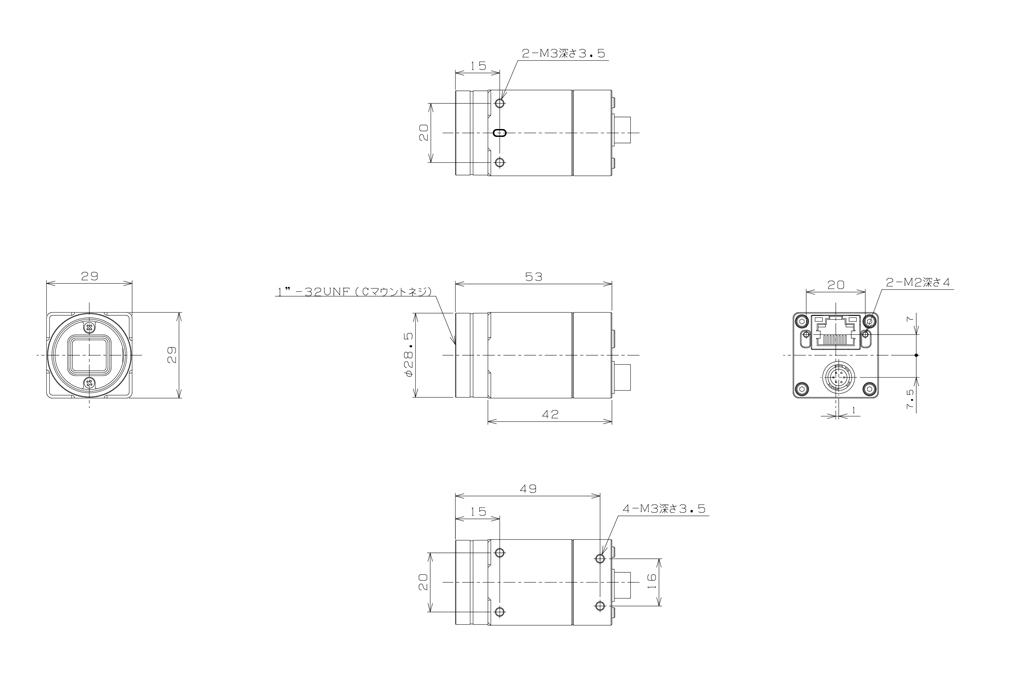

Dimensions Drawings

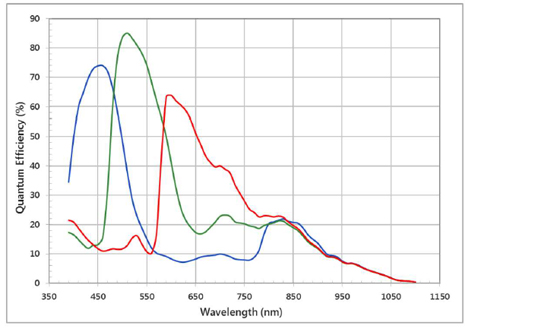

Spectrographic Drawings
