STC-MCS510CXP6

Available Now

Specification Sheet
Dimensions
Spectral Characteristics
Related Documents Downloads
Product Inquiry

SPEC

Specification Sheet

Product
Specifications

Product Model	STC-MCS510CXP6
Camera Type	Area Camera
Resolutions	5MP
Color / Monochrome	Color
Effective Pixels	2,448 (H) x 2,048 (V)
Frame Rate	98.0fps
Interface	CoaXPress (CXP-6, 1 lane)
Protocol	CoaXPress Standard Version 1.1.1
Power Supply	PoCXP
Power Consumptions	Less than 3.6 W
Operational Temperature	Lower limit: 0 deg. C (Environmental temperature) Upper limit: +40 deg. C (Environmental temperature)
Storage Temperature	Lower limit: -20 deg. C (Environmental temperature) Upper limit: +75 deg. C (Environmental temperature)

Sensor

Image Sensor	SONY IMX250
Shutter Type	Global Shutter
Optical Size	2/3"
Cell Size	3.45 (H) x 3.45 (V) µm

Mechanical

Dimensions	28 (W) x 28 (H) x 40 (D) mm
Weight	Approximately 52 g
Lens Mount	C Mount
Optical Filter	No optical filter
Interface Connector	BNC (75 ohm) x 1
Power / Signal Connector	HR10A-7R-6PB (Hirose) or equivalent x 1

Functions

Scanning Mode	Full scanning / ROI
Operational Mode	Edge preset trigger / Pulse width trigger / CXP_Packet trigger / Burst trigger / Free-run
Image Pixel Format	BayerRG8 / BayerRG10 / BayerRG12
Exposure Time	1 µs to 16.777 seconds
Analog Gain	0 to 42 dB (Image sensor gain including digital)
Digital Gain	x1 to x7
Gamma	N/A
Binning	N/A
Decimation	x2 horizontal and vertical simultaneously / Off
Image Flip	Vertical flip / Horizontal flip / Vertical and horizontal flip / Off
Defective Pixel Correction	Up to 512 pixels
Save User Settings	Support (Eight settings)
White Balance	Auto / Manual / Push to set white balance
FFC (Flat Filed Correction) Function	N/A
Auto Control Function	Auto white balance
Chunk Function	N/A
Event Function	N/A
PTP Function (IEEE1588)	N/A

DIMENSIONS

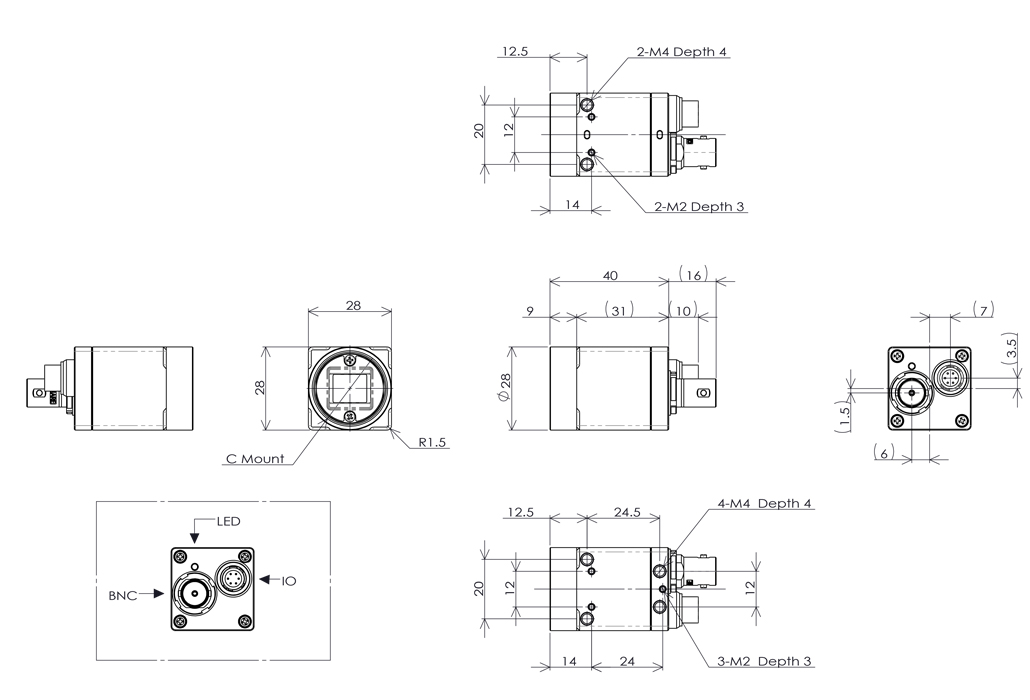

Dimensions

SPECTROGRAM

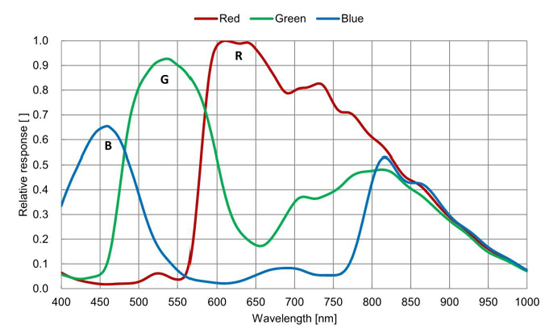

Spectral Characteristics
