STC-RBS502GV2CA-W

NEW
Available Now

Specification Sheet
Dimensions
Spectral Characteristics
Related Documents Downloads
Product Inquiry

SPEC

Specification Sheet

Product
Specifications

Product Model	STC-RBS502GV2CA-W
Camera Type	Area Camera
Resolutions	5MP
Color / Monochrome	Monochrome
Effective Pixels	2,448 (H) x 2,048 (V)
Frame Rate	68.7 fps
Interface	GVIF2 (with USB3 Vision conversion control unit)
Protocol	GVIF2
Power Supply	Power over GVIF (+12V)
Power Consumptions	Less than 3.5 W
Operational Temperature	Lower limit: 0 deg. C (Environmental temperature) Upper limit: +55 deg. C (Housing temperature)
Storage Temperature	Lower limit: -25 deg. C (Environmental temperature) Upper limit: +80 deg. C (Environmental temperature)

Sensor

Image Sensor	SONY IMX568
Shutter Type	Global Shutter
Optical Size	1/1.8"
Cell Size	2.74 (H) x 2.74 (V) µm

Mechanical

Dimensions	28 (W) x 28 (H) x 35.65 (D) mm (IP67)
Weight	approximately 45 g
Lens Mount	S Mount
Optical Filter	No optical filter
Interface Connector	FAKRA x 1 (Shared power and signal connector)
Power / Signal Connector	FAKRA x 1 (Shared interface connector)

Functions

Scanning Mode	Full scanning / ROI
Operational Mode	Edge preset trigger / Free-run
Image Pixel Format	Mono8 / Mono10 / Mono12 Mono10 Packed / Mono12 Packed
Exposure Time	20 µseconds to 2 seconds
Analog Gain	0 to 42.0 dB
Digital Gain	x1 to x7
Gamma	0.10 to 4.00
Binning	x2 horizontal and vertical simultaneously / Off
Decimation	x2 horizontal and vertical simultaneously / Off
Image Flip	Vertical flip / Horizontal flip / Vertical and horizontal flip/ Off
Defective Pixel Correction	Up to 1,024 pixels
Save User Settings	Support (Eight settings)
White Balance	N/A
FFC (Flat Filed Correction) Function	Support
Auto Control Function	Auto exposure / Auto gain
Chunk Function	N/A
Event Function	N/A
PTP Function (IEEE1588)	N/A

* S mount (M12 P=0.5)

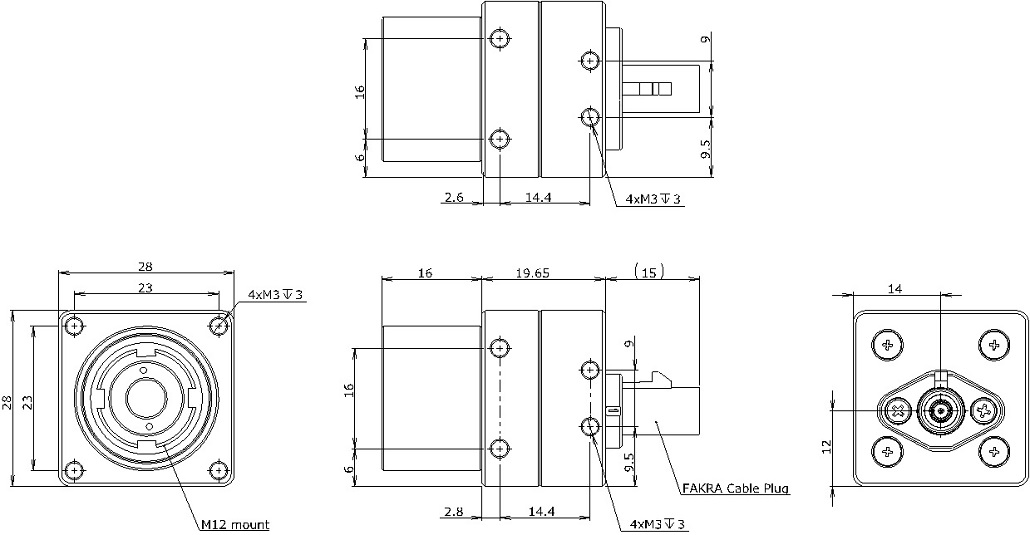

DIMENSIONS

Dimensions

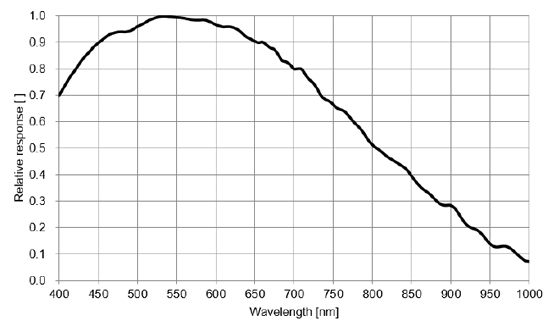

SPECTROGRAM

Spectral Characteristics
