Industrial Endoscope V55N Series

Features

This is a series of industrial endoscopes that can be used for in-pipe inspections and a range of other fields and applications.
With German design and Taiwanese manufacturing, the series offers exceptional cost performance.

System Flow

With an extensive lineup, you can cover most endoscope applications at a low cost.
The main unit can be combined with various parts for use.

Main Unit	V55 Hand-held Controller Easily carried, enables hand-held confirmation of images.
+
Relay Cable	SUS-type Relay Cable	The endoscope can also be used by connecting the probe directly to the main unit without using the relay cable.
+
Probe	Swivel Rigid: Fixed rod shape with a swivel end.	Swivel Metal Blade: The end swivels and the probe bends flexibly.	Rigid: A metal rod shape that doesn't bend.	Fiberglass Scope: Enables observation of areas 10-20 meters ahead.
Probe	Flex: Bends flexibly, cannot be made semi-rigid.	Semi-rigid: Bends flexibly but can be made semi-rigid.	Auto-focus Flexible Type: Easily obtain crisp images with auto-focus.
+
Accessories	Side-viewing mirror adapter: Attached to the probe tip to allow viewing to the sides.	Guide Ball: Attached near the probe tip to ensure proper working distance.

Usage

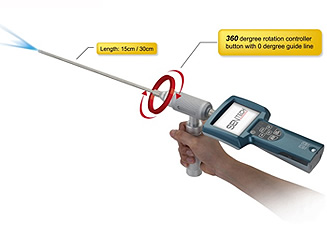

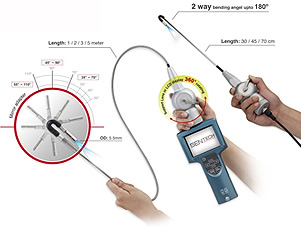

V55N + Swivel Metal Blade	V55N + Rigid	V55N + Flexible Relay Cable + Rigid

Application

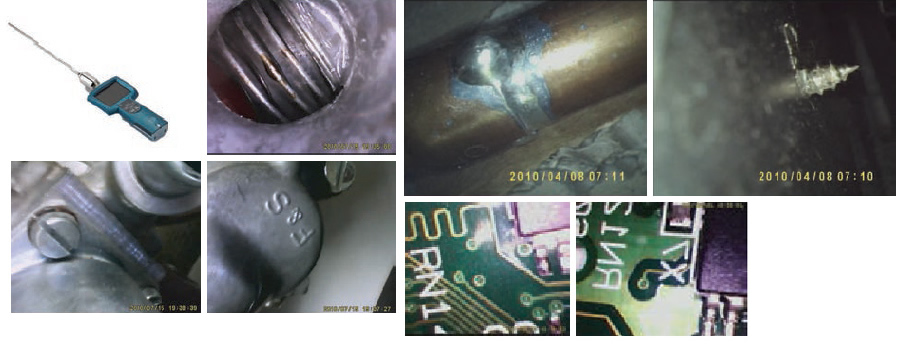

Imaging Examples
