USB 3.0 Model
Description

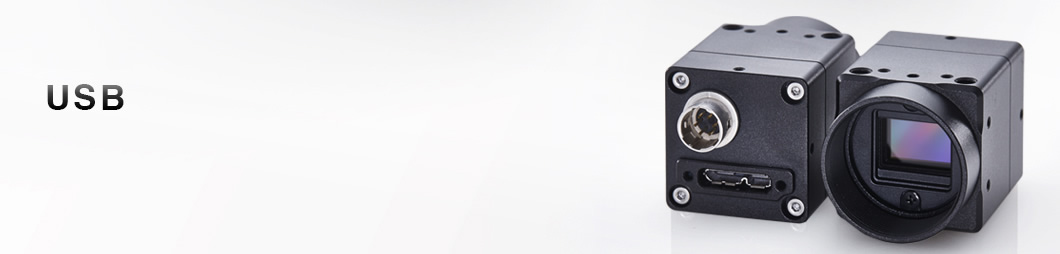

USB3.0 Compact CMOS Camera.
Features
Sony CMOS [Pregius] adopted cameras are lined up High resolution,high speed CMOS sensors adopted Compact, robust and easy to attach.
*Pregius is a trademark of Sony Corporation.
Product Lineup
USB3 Vision supported model
| Resolution | 0.4M | 1.3M | 1.6M | 2M | 2.3M | 2.3M | 3.2M | 3.2M | 4M | 5M | 5M | 8.9M | 8.9M | 12M | 12M | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model No. | Monochrome | STC-MBS43U3V | STC-MBE132U3V | STC-MBS163U3V | STC-MBCM200U3V | STC-MBS231U3V | STC-MBS241U3V | STC-MBS312U3V | STC-MBS322U3V | STC-MBCM401U3V | STC-MBS500U3V | STC-MBS510U3V | STC-MBS881U3V | STC-MBS891U3V | STC-MBS122BU3V | STC-MBS123BU3V |
| Color | STC-MCS43U3V | STC-MCE132U3V | STC-MCS163U3V | STC-MCCM200U3V | STC-MCS231U3V | STC-MCS241U3V | STC-MCS312U3V | STC-MCS322U3V | STC-MCCM401U3V | STC-MCS500U3V | STC-MCS510U3V | STC-MCS881U3V | STC-MCS891U3V | STC-MCS122BU3V | STC-MCS123BU3V | |
| Monochrome near-infrared | STC-MBCM200U3V-NIR | STC-MBCM401U3V-NIR | ||||||||||||||
| Frame Rate | 527.1fps | 60fps | 238fps | 167fps | 41.6fps | 163fps | 56fps | 121fps | 89fps | 35.8fps | 75.7fps | 32.5fps | 41.9fps | 23.5fps | 30.4fps | |
| Effective Pixels | 720x540 | 1280x1024 | 1440x1080 | 2048x1088 | 1920x1200 | 1920x1200 | 2048x1536 | 2048x1536 | 2048x2048 | 2448x2048 | 2448x2048 | 4096x2160 | 4096x2160 | 4096x3000 | 4096x3000 | |
| Sensor Size | 1/2.9" | 1/1.8" | 1/2.9" | 2/3" | 1/1.2" | 1/1.2" | 1/1.8" | 1/1.8" | 1" | 2/3" | 2/3" | 1" | 1" | 1.1" | 1.1" | |
| Cell Size (H x V, μm) | 6.9 x 6.9 | 5.3 x 5.3 | 3.45 x 3.45 | 5.5 x 5.5 | 5.86 x 5.86 | 5.86 x 5.86 | 3.45 x 3.45 | 3.45 x 3.45 | 5.5 x 5.5 | 3.45 x 3.45 | 3.45 x 3.45 | 3.45 x 3.45 | 3.45 x 3.45 | 3.45 x 3.45 | 3.45 x 3.45 | |
| Imaging Area (H x V x D, mm) | 4.97 x 3.72 | 5.4 x 6.8 x 8.7 | 4.97 x 3.72 | 5.984 x 11.264 x 12.755 | 7.03 x 11.25 x 13.4 | 7.03 x 11.25 x 13.4 | 5.29 x 7.06 | 5.29 x 7.06 | 11.264 x 11.264 x 15.930 | 7.06 x 8.44 | 7.06 x 8.44 | 7.45 x 14.13 | 7.45 x 14.13 | 10.35 x 14.13 | 10.35 x 14.13 | |
| Sensor | Monochrome | IMX287 | EV76C560 | IMX273 | CMV2000 | IMX249 | IMX174 | IMX265 | IMX252 | CMV4000 | IMX264 | IMX250 | IMX267 | IMX255 | IMX304 | IMX253 |
| Color | IMX287 | EV76C560 | IMX273 | CMV2000 | IMX249 | IMX174 | IMX265 | IMX252 | CMV4000 | IMX264 | IMX250 | IMX267 | IMX255 | IMX304 | IMX253 | |
| Lens Mount | C-Mount | CS-Mount | C-Mount | C-Mount | C-Mount | C-Mount | C-Mount | C-Mount | C-Mount | C-Mount | C-Mount | C-Mount | C-Mount | C-Mount | C-Mount | |
USB3 Vision Non-supported model
| Resolution | 5M | |
|---|---|---|
| Model No. | Monochrome | STC-MBA5MUSB3 |
| Color | STC-MCA5MUSB3 | |
| Monochrome near-infrared | ||
| Frame Rate | 14fps | |
| Effective Pixels | 2592x1944 | |
| Sensor Size | 1/2.5" | |
| Cell Size (H x V, μm) | 2.2 x 2.2 | |
| Imaging Area (H x V x D, mm) | 4.28 x 5.7 x 7.13 | |
| Sensor | Monochrome | MT9P031 |
| Color | MT9P031 | |
| Lens Mount | CS-Mount | |
External Connector Specifications
| External Link Connectors | USB: USB 3.0 micro B type, I/O signals: HR10A-7R-6PB (Hirose) or equivalent |
|---|
- The power supply of this connector is for the output signal, and not for the camera. The camera power supply is supplied in +5V from the USB path via the USB connector. In addition, it does not affect the voltage for the input signal.
- 8.9M, 12M cameras may not have sufficient supply power with USB bus supply only depending on PC spec. We recommend you to use external power.
Pin Assignments
| Pin No. | Signal Name | I/O | Signal Voltage | |
|---|---|---|---|---|
| Low | High | |||
| 1 | GND for I/O signal | - | 0V | |
| 2 | Output 2(IO3) | OUT | 0.8V or lower | +3.3 - +24V |
| 3 | Output 1 (IO2) | OUT | 0.8V or lower | +3.3 - +24V |
| 4 | Input 2(IO1) | IN | 0.7V or lower | +2.5 - +5V |
| 5 | Input 1(IO0) | IN | 0.7V or lower | +2.5 - +5V |
| 6 | Power supply for output signal (IO_VCC) | - | +3.3 to +24 Vdc | |
*Please use an HR10A-7P-6S (Hirose) equivalent on the cable-side.
*Example shown for reference.
External View
STC-MBE/MCE132U3V
STC-MBA/MCA5MUSB3
STC-MBCM/MCCM200U3V
STC-MBCM/MCCM401U3V
STC-MBS/MCS43U3V
STC-MBS/MCS163U3V
STC-MBS/MCS241U3V
STC-MBS/MCS231U3V
STC-MBS/MCS322U3V
STC-MBS/MCS312U3V
STC-MBS/MCS510U3V
STC-MBS/MCS500U3V
STC-MBS/MCS881U3V
STC-MBS/MCS891U3V
STC-MBS/MCS122BU3V
STC-MBS/MCS123BU3V
